Union Tee

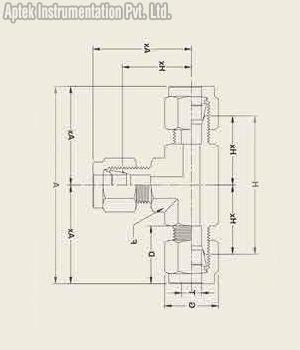

IMPERIAL RANGE - DIMENSIONS IN INCHES

T O/D	Ax LENGTH	D	F BODY	G NUT	Hx BODY	H	A
1/16	0.72	0.34	0.47	5/16	0.56	1.12	1.44
1/8	0.99	0.50	0.47	7/16	0.72	1.44	1.98
3/16	1.01	0.54	0.47	1/2	0.75	1.50	2.02
1/4	1.07	0.60	0.47	9/16	0.78	1.56	2.25
5/16	1.17	0.64	0.55	5/8	0.88	1.76	2.34
3/8	1.20	0.66	0.55	11/16	0.91	1.82	2.40
1/2	1.30	0.90	0.75	7/8	0.98	1.96	2.76
5/8	1.46	0.96	0.94	1	1.06	2.12	2.92
3/4	1.51	0.96	1.06	1-1/8	1.11	2.22	3.02
1	1.79	1.23	1.25	1-1/2	1.31	2.62	3.58

METRIC RANGE - DIMENSIONS IN INCHES

T	Ax LENGTH	D	F BODY	G NUT	Hx BODY	H	A
4	26.15	14.29	12	12	19.00	38.00	52.30
6	27.20	15.88	12	14	19.80	39.60	54.40
8	29.70	16.67	14	17	22.20	44.40	59.40
10	30.80	17.46	14	19	23.10	46.20	61.60
12	35.00	23.02	19	22	24.90	49.80	70.00
16	36.39	24.61	24	27	26.19	52.38	72.78
18	39.37	24.61	27	30	29.37	58.74	78.74
20	39.37	24.61	27	30	29.37	58.74	78.74
25	45.24	30.96	32	41	33.54	67.08	90.48
