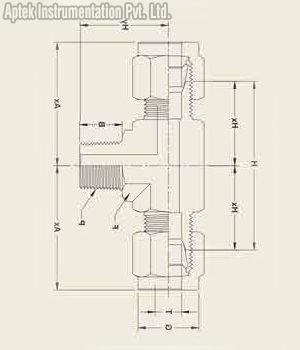

Male Branch Tee

IMPERIAL RANGE - DIMENSIONS IN INCHES

T O/D	P	Ax LENGTH	B	Hy	F	G NUT	Hx BODY	H BODY	A
1/8	1/8	0.99	0.38	0.76	0.47	7/16	0.72	1.44	1.98
1/8	1/4	0.99	0.56	0.94	0.47	7/16	0.72	1.44	1.98
3/16	1/8	1.01	0.38	0.76	0.47	1/2	0.75	1.50	2.02
1/4	1/8	1.07	0.38	0.76	0.47	9/16	0.78	1.56	2.14
1/4	1/4	1.07	0.56	0.94	0.47	9/16	0.78	1.56	2.14
1/4	3/8	1.13	0.56	1.00	0.55	9/16	0.84	1.68	2.26
5/16	1/8	1.16	0.38	0.82	0.55	5/8	0.87	1.74	2.32
3/8	1/8	1.21	0.38	0.82	0.55	11/16	0.91	1.82	2.42
3/8	1/4	1.21	0.56	1.00	0.55	11/16	0.91	1.82	2.42
3/8	3/8	1.21	0.56	1.00	0.55	11/16	0.91	1.82	2.42
3/8	1/2	1.21	0.75	1.26	0.75	11/16	0.91	1.82	2.42
1/2	1/4	1.38	0.56	1.08	0.75	7/8	0.98	1.96	2.76
1/2	3/8	1.38	0.56	1.08	0.75	7/8	0.98	1.96	2.76
1/2	1/2	1.38	0.75	1.26	0.75	7/8	0.98	1.96	2.76
5/8	1/2	1.46	0.75	1.38	0.75	1	1.06	2.12	2.92

METRIC RANGE - DIMENSIONS IN INCHES

T O/D	P	Ax LENGTH	B	Hy	F	G NUT	Hx BODY	H BODY	A
4	1/16	26.15	9.53	19.30	12	12	19.05	38.10	52.30
4	1/8	26.15	9.53	19.53	12	12	19.05	38.10	52.30
4	1/4	26.15	14.29	23.90	12	12	19.05	38.10	52.30
6	1/8	27.21	9.53	19.30	12	14	19.80	39.60	54.42
6	1/4	27.21	14.29	23.90	12	14	19.80	39.60	54.42
6	3/8	28.73	14.29	25.40	14	14	21.33	42.66	57.46
6	1/2	30.51	19.05	32.00	19	14	23.10	46.20	61.00
8	1/8	29.70	9.53	20.80	14	17	22.22	44.44	59.40
8	1/4	29.70	14.29	25.40	14	17	22.22	44.44	59.40
8	3/8	29.70	14.29	25.40	14	17	22.22	44.44	59.40
8	1/2	31.50	19.05	32.00	19	17	24.00	48.00	63.00
10	1/8	30.80	9.53	20.80	14	19	23.10	46.20	61.60
10	1/4	30.80	14.29	25.40	14	19	23.10	46.20	61.60
10	3/8	30.80	14.29	25.40	14	19	23.10	46.20	61.60
10	1/2	32.59	19.05	32.00	19	19	24.89	49.78	65.18
12	1/4	34.99	14.29	27.40	19	22	24.89	49.78	69.98
12	3/8	32.59	14.29	27.40	19	22	24.89	49.78	65.18
12	1/2	32.59	19.05	32.00	19	22	24.89	49.78	65.18
16	1/2	36.39	19.05	34.90	24	27	26.19	52.39	72.78
